Pfeilkomponenten
Produktinformationen ".166" SL Ultralight Bushing (Pin Nock)"Artikel Nr.: 11379Innendurchmesser:.166", 4,22mmTyp:BushingAußendurchmesser :.220", 5,60mmGroeße:.166 SL Bushing (4.22/5.6)Gewicht:7.4Form:Pin BushingFarbe:SilberMaterial:7075t Alu
Beiter Insert Nock for ID 4.2 For .165 size shafts.Each nock has only one single mould for the tightest tolerances and the highest precision.Nock groove shaped to prevent pinching the string for a consistent release.Asymmetrical design, made specifically for the most accurate shooting with a recurve from the fingers.Suitable for many popular shafts from brands such as Black Eagle, GoldTip and Victory. Groove Size1Grain Weight6.1 grainsProfileAsymmetricCompatibilityfor most .165 inner diameter shaftsMaterialPlastic
Beiter Insert Nock for ID 6.2/.244 For .244 size shafts.Each nock has only one single mould for the tightest tolerances and the highest precision.Nock groove shaped to prevent pinching the string for a consistent release.Asymmetrical design, made specifically for the most accurate shooting with a recurve from the fingers.Suitable for many popular shafts from brands such as Black Eagle, GoldTip and Victory. Groove Size1Grain Weight9.5 grainsProfileAsymmetricCompatibilityfor most .204 inner diameter shaftsMaterialPlastic
Beiter Insert Nock for ID 5.2 For .204 size shafts.Each nock has only one single mould for the tightest tolerances and the highest precision.Nock groove shaped to prevent pinching the string for a consistent release.Asymmetrical design, made specifically for the most accurate shooting with a recurve from the fingers.Suitable for many popular shafts from brands such as Black Eagle, GoldTip and Victory. Groove Size1Grain Weight9.2 grainsProfileAsymmetricCompatibilityfor most .204 inner diameter shaftsMaterialPlastic
Beiter Pin Nock Pin nock design will fit pin bushings of all known typesEach nock has only one single mould for the tightest tolerances and the highest precisionNock grove shaped to prevent pinching the string for a consistent releaseSimple to install with an easy push-fit designAsymmetrical design, made specifically for the most accurate shooting with a recurve Groove Size1Grain Weight4.3 grainsProfileAsymmetricMaterialPlastic
DK Convex Points for ID4.2 50-120gn .166 Material: Edelstahl passend für DK Gungnir und Cougar Die Spitze ist so für den Schaft angepasst, dass sie ohne Überlappung abschließt TypCougarGungnirØ +/-0,02mmI500 - 800- 5,87II900 - 1300500 - 9005,25III1400 - 180010005
DK Convex Points for ID 5.2 (Tyrfing) Material: EdelstahlGewicht: 50 - 80gn oder 80 - 110gn Die Spitze ist so für den Schaft angepasst, dass sie ohne Überlappung abschließt TypGewichtSpineI80 - 110gn400IIa50 - 80gn500 - 600II 80 - 110gn 500 - 600 IIIa 50 - 80gn 700 - 1100III 80 - 110gn 700 - 1100
DK Insert 9/32 20-30-40gn for ID6.2 - DK Panther shaftMaterial: ALU
DK Nocken für ID 4,2 in 2 Größen erhältlich: I - groß II - kleinpassend für DK Gungnir und Cougar
DK Nocken für ID 5,2 Größe - passend für DK Tyrfing
DK Nocken für ID 6,2 Größe - passend für DK Panther
DK Pin Nock Pin nock design will fit pin bushings of all known types Material: plasticColour: withe

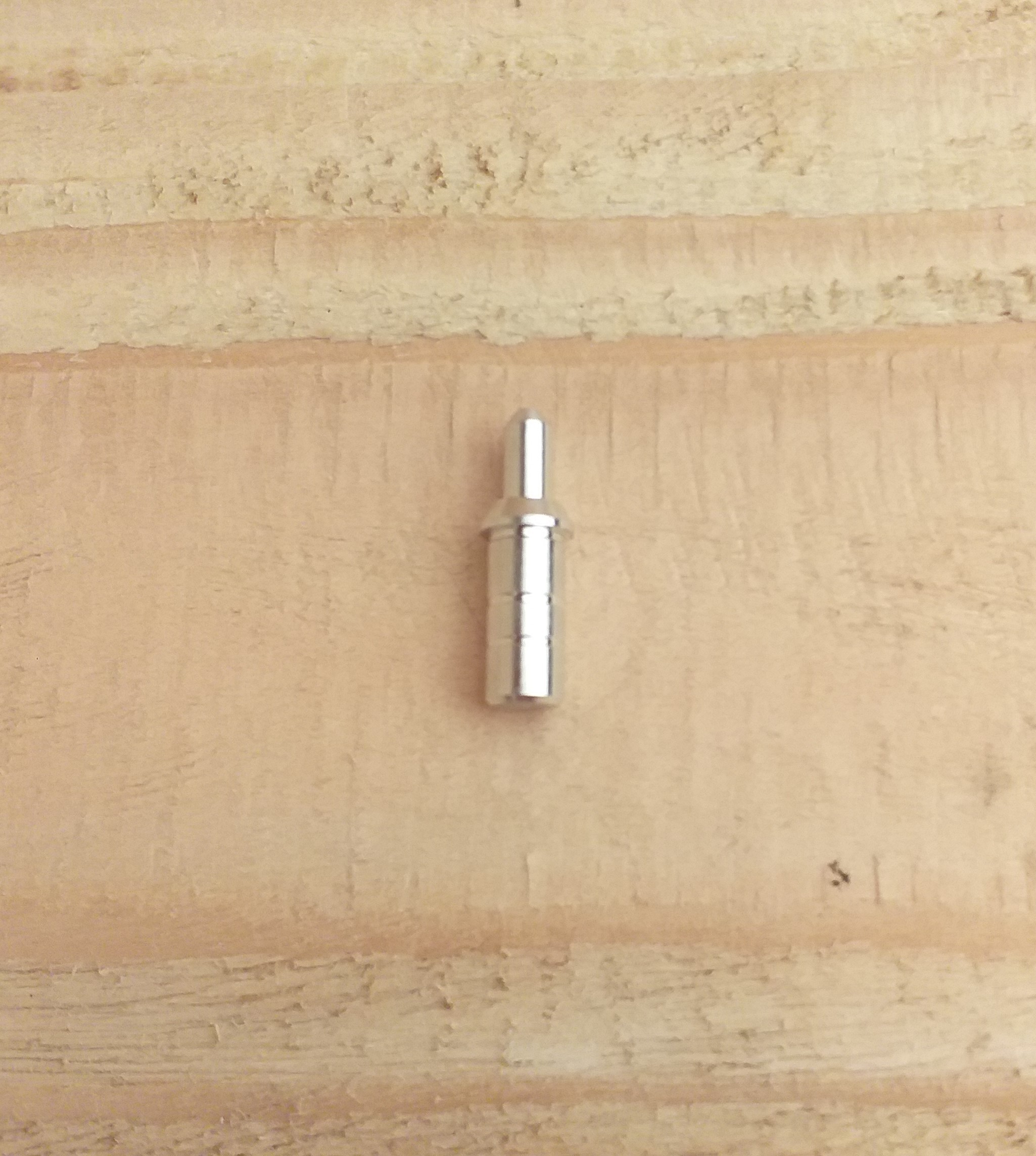

DK Pins for ID 5.2 (Tyrfing) / Pin Nock / BushingMaterial: Alu
DK Schraubspitze für ID6.2 (DK Panther)von 40-120gn erhältlich Material: Edelstahl

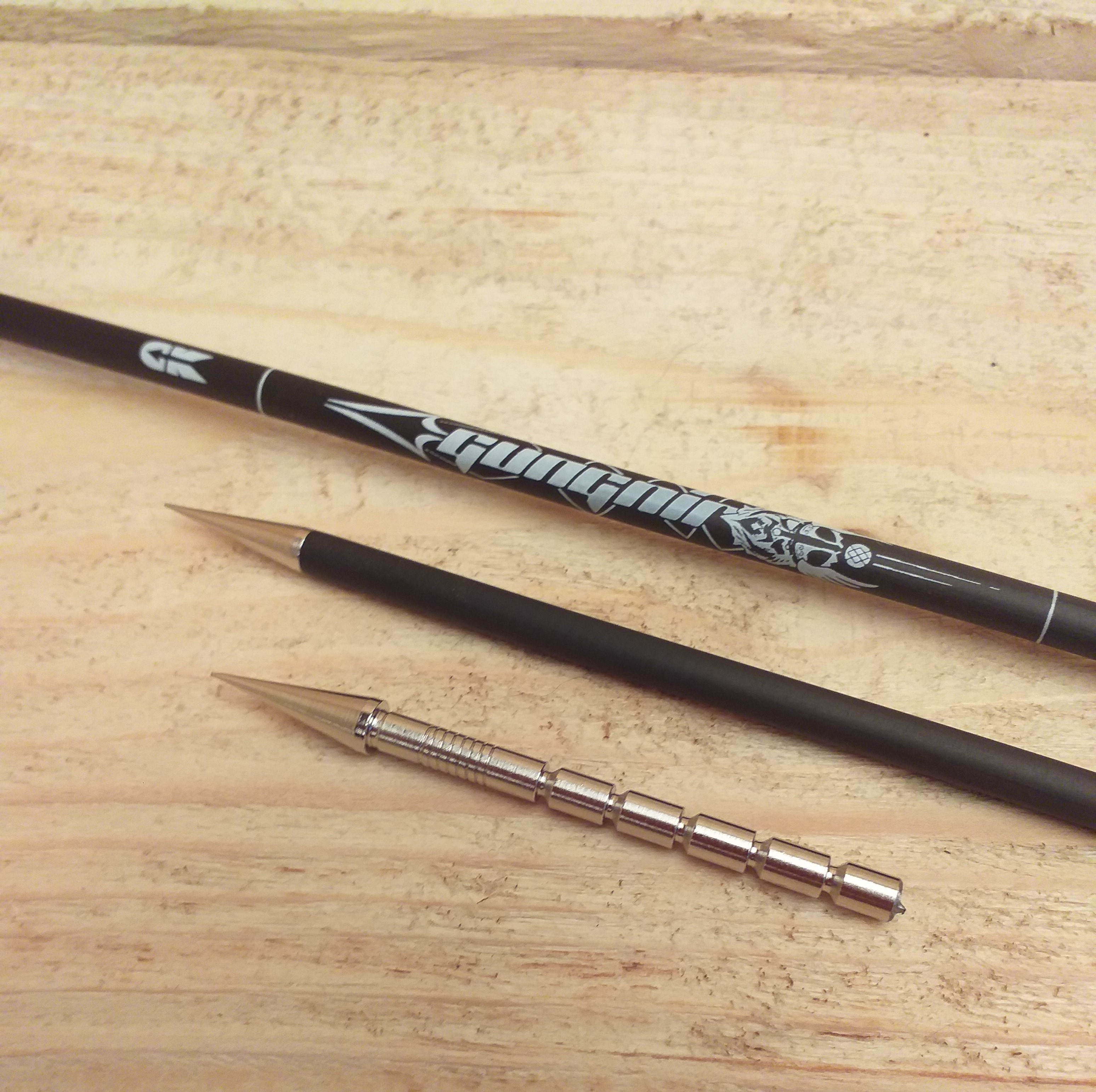

DK Sharp Points for ID4.2 50-110gn .166Material: Edelstahl passend für DK Gungnir und Cougar Die Spitze ist so für den Schaft angepasst, dass sie ohne Überlappung abschließtTypCougarGungnirØ +/-0,02mmI400-6,1II500 - 600- 5,75III700 - 800-5,5IV900-10005005,38V1100-1400600 - 7002,23VI1500 - 1800800 - 10005
DK Sharp Points for ID 5.2 (Tyrfing) Gewicht: 50 - 80gn oder 80 - 110gn Material: Edelstahl Die Spitze ist so für den Schaft angepasst, dass sie ohne Überlappung abschließtTypGewichtSpineI80 - 110gn400IIa50 - 80gn500 - 600II80 - 110gn 500 - 600 IIIa50 - 80gn 700 - 1100III80 - 110gn 700 - 1100

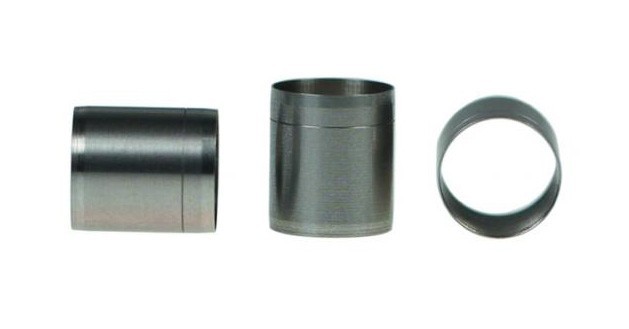

Shaft Chart Material: Edelstahl COUGAR 006 Spine Ring outer diameter 600 5,75 5,74 700 5,60 5,61 800 5,45 5,52 1000 5,45 5,42 1200 5,23 5,20 1300 5,23 5,20 1500 5,00 5,05 1800 5,00 5,00 PANTHER 001 | 006 400 7,30 7,33 500 7,30 7,23 600 7,15 7,14 700 7,00 7,05 800 7,00 7,00 GUNGNIR 006 | 001 500 5,45 5,40 600 5,30 5,30 700 5,15 5,15 800 5,15 5,10 900 5,00 5,00 1000 5,00 4,95 TYRFING 006 400 6,39 6,39 500 6,21 6,21 600 6,13 6,13 700 6,02 6,02 800 5,90 5,92 900 5,90 5,92 1000 6,00 5,95 1100 6,00 5,82 7,30mm Protector Ring GoldTip Velocity 600 GoldTip Ultralight 600 Bloodsport 2 500 CarbonTech Cheetah 400 GoldTip Ultralight 500 Beman ICS Hunter Junior Easton Lightspeed 500 Easton Powerflight 500 Easton Flatline 500 Beman ICS Hunter 500 7,45mm Protector Ring CE Maxima Blue Streak 250 Victory V-Force V6 600 pink GoldTip Warrior 3555 GoldTip Ultralight 400 CE Maxima Hunter 250 GoldTip Velocity 400 GoldTip Expedition Hunter3555 Beman ICS Hunter 400 7,60mm Protector Ring CE Maxima Blue Streak 350 Victory V-Force V6 400 Victory V-Force V3 400 GoldTip TradWoodHunter 1535 GoldTip Warrior 5575 GoldTip XT Hunter 5575 GoldTip Pro Hunter 5575 GoldTip Ultralight 300 Easton Flatline 340 GoldTip Expedition Hunter5575 Beman ICS Hunter Pro 400 Beman ICS Hunter 340 CE Mutiny 350 GoldTip Velocity 300 CE Maxima Hunter 350 CE Mayhem 250 CE Heritage 907,75mm Protector Ring GoldTip TradWood Hunter 3555 GoldTip Ted Nugent Zebra3555 GoldTip Name the Game 500 Bloodsport 2 300 GoldTip Expedition Hunter5575 GoldTip XT Hunter 7595 Beman ICS Hunter Pro 340 GoldTip Pro Hunter 7595 CE Maxima Hunter 450 GoldTip Exp. Hunter camoHunter 5575 GoldTip XT Hunter camo Hunter 5575 GoldTip Ted Nugent Zebra 5575 GoldTip TradWood Hunter 5575 GoldTip Name the Game 400 CE Maxima Hunter KV 350
